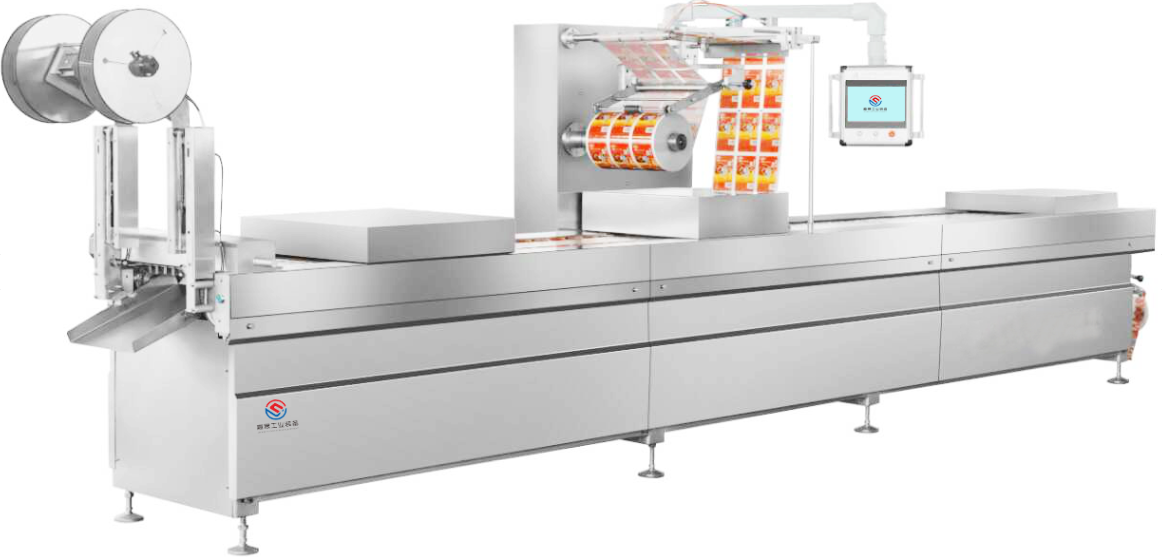

产品介绍：This is an automated packaging equipment that includes stretch thermoforming, vacuum (air inflation), heat sealing, coding, cutting, collecting and conveying.

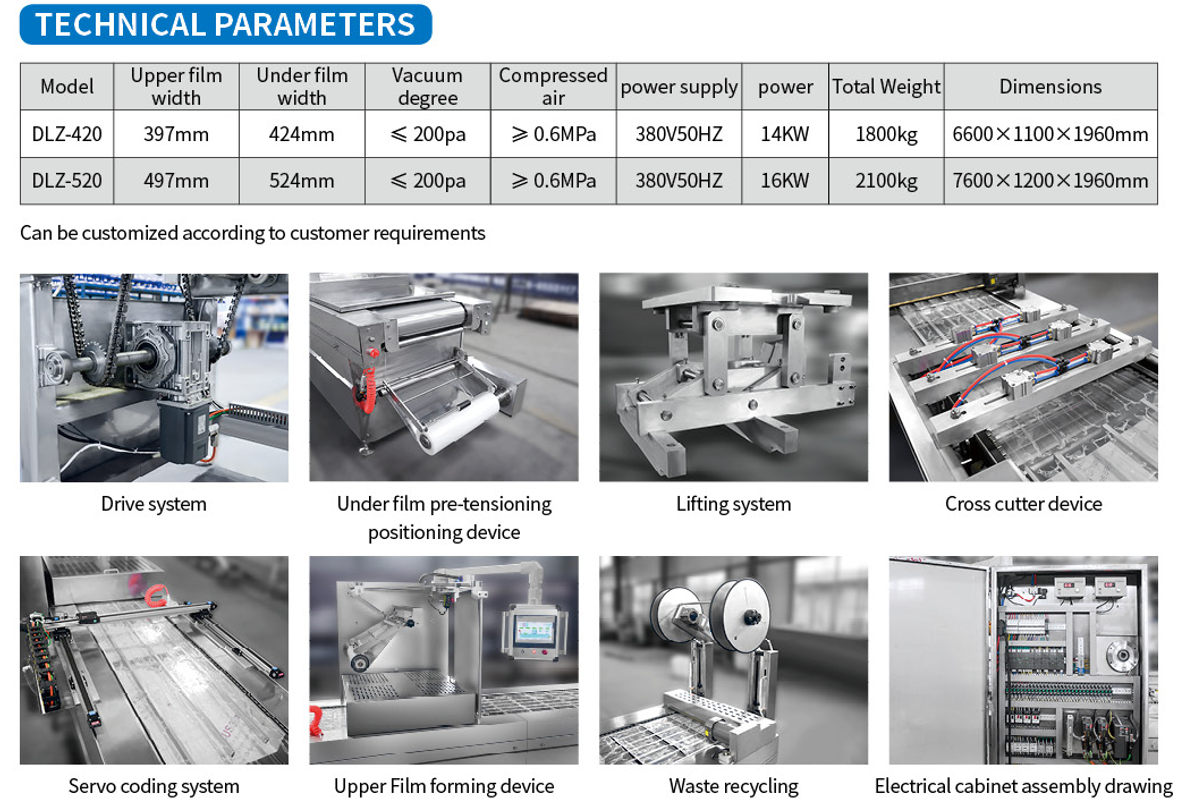

Technical Parameters：

Product Detail:

1.Drive system

2.Under film pre-tensioning positioning device

3.Lifting system

4.Cross cutter device

5.Servo coding system

6.Upper Film forming device

7.Waste recycling

8.Electrical cabinet assembly drawing

Application :

The equipment is mainly suitable for:steak,grilled sausage,ham sausage,crispy sausage,pickled chicken feet,quail eggs,dried tofu,fish products,beef products,lamb products,soild sauce,dried fruits,cheese,electronic components,metal products and other products that require vacuum packaging.

不锈钢框架结构

304 Stainless steel frame structure

1. The structure has high strength and corrosion resistance. The screw holes in each fixed position are processed by high-precision laser at one time to ensure the accuracy of assembly and make the whole machine run smoothly.

2. More expandability, when the packaging form needs to be upgraded, relevant parts can be added at any time according to the packaging requirements.

四轴联动升降装置

Four-axis linkage lifting device

1. The lifting device is made of 6061 aviation aluminum alloy, which increases the stability and strength of the components. The sliding parts adopt imported high wear-resistant linear bearings, which are accurate in positioning and stable in operation. The lifting height can be adjusted arbitrarily according to the thickness of the product packaging. Without changing the running speed, the lifting distance is shortened to improve the packaging speed of the entire machine.

2. The parts are inlaid with graphite copper sleeves to increase lubrication, reduce abrasion and extend the service life. In addition, the graphite copper sleeve is extremely pressure-resistant, which ensures the sealing of the molding chamber and the vacuum chamber.

电子磁力预紧装置

Electronic magnetic pre-tightening device

1. Using electromagnetic brake, the brake is stable and the force is even, avoiding the phenomenon of wrinkling and curling of the packaged products.

2. The digital display shows that the tightening force is adjustable. The key can be adjusted conveniently and intuitively according to the thickness, flexibility and softness of the packaging film to achieve the best packaging effect.

电气系统

Electrical System

1. The intelligent control system adopts the German Siemens brand uniformly, and the control points are responsive and cooperative. The temperature, time, and vacuum pressure of each part are displayed on the computer screen, and it has its own fault detection function.

2. Adopting German Siemens high inertia servo motor and driver, the chain positioning is accurate and running fast.

智能操作系统

Intelligent operating system

1. Touch screen operation, automatic program control, graphic display of the entire running status, automatic detection of the cause of failure, easy to operate and maintain the equipment.

2. The intelligent and humanized operation screen is simpler and clearer. Each parameter can be adjusted appropriately according to different products, and different product process parameters can be stored. One-click calling saves time and effort.

安全保护系统

Safety protection system

1. All transmission parts; parts with temperature; cutting and moving parts are equipped with protection devices, and magnetic contact switches are installed. Once the protection devices are not in place or the original machine protection devices are not in place, the machine will stop immediately.

2. The equipment itself is equipped with emergency stop switches in different positions, so as to stop the machine in time when an accident occurs.

3. It is forbidden to reach out hands, feet, arms and other parts with a beam switch, once it is sensed, it will stop immediately.

废膜回收系统

Waste film recycling system

1. The waste recycling has an intelligent detection device, which can automatically adjust the operating speed according to the length of the waste film.

2. The device is noise-free, easy to collect the film, equipped with 150W power, indirect operation, saving power consumption.

成型与热封模具

Forming and heat sealing mold

All molds can be quickly replaced, and multiple sets of molds can be exchanged on a set of equipment to facilitate the packaging of multiple products.

多功能分切系统

Multifunctional slitting system

According to different products, it can realize round corner slitting, easy tearing, hanging holes, serrated slitting, overall punching and other applications, and the speed of cutter replacement is quick and easy.
