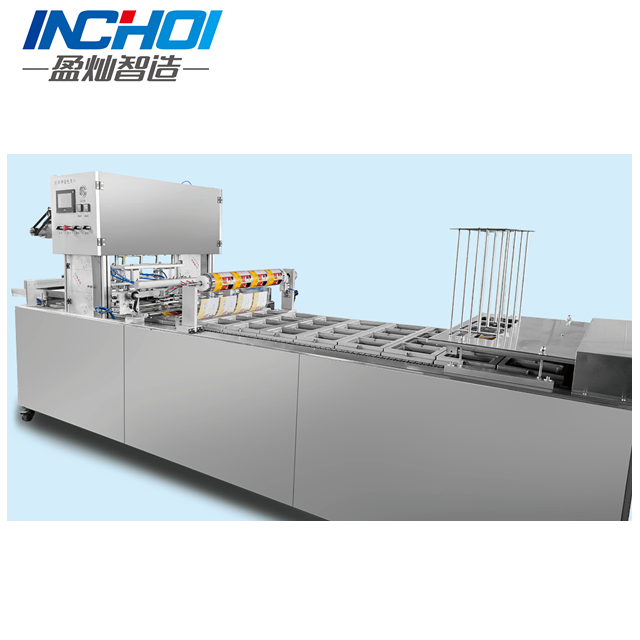

AUTOMATIC MODIFIED ATMOSPHERE PACKAGING MACHINE

AUTOMATIC MODIFIED ATMOSPHERE PACKAGING MACHINE

Main target market:
Minimum order quantity :
Collection of exhibits

Exhibit parameters

  • Exhibit code:SN016260
  • Size of exhibits(mm):
  • Model of exhibits:
  • Materials of exhibits:
  • Color of exhibits:
  • Place of delivery:China--
  • Raw material production place:China--
  • Features of exhibits:

Details of exhibits

产品名称:Automatic continuous modified atmosphere packaging machine

设备简介Equipment Introduction

This machine is suitable for box packaging of all kinds of foods, continuous and automatic vacuum and automatic mixing of fresh-keeping gas (usually a mixed gas of CO2, N2, and O2), sealing packaging, slitting, and discharging of packaged products (assembly line: connectable to metal detection, Weighing and labeling system).

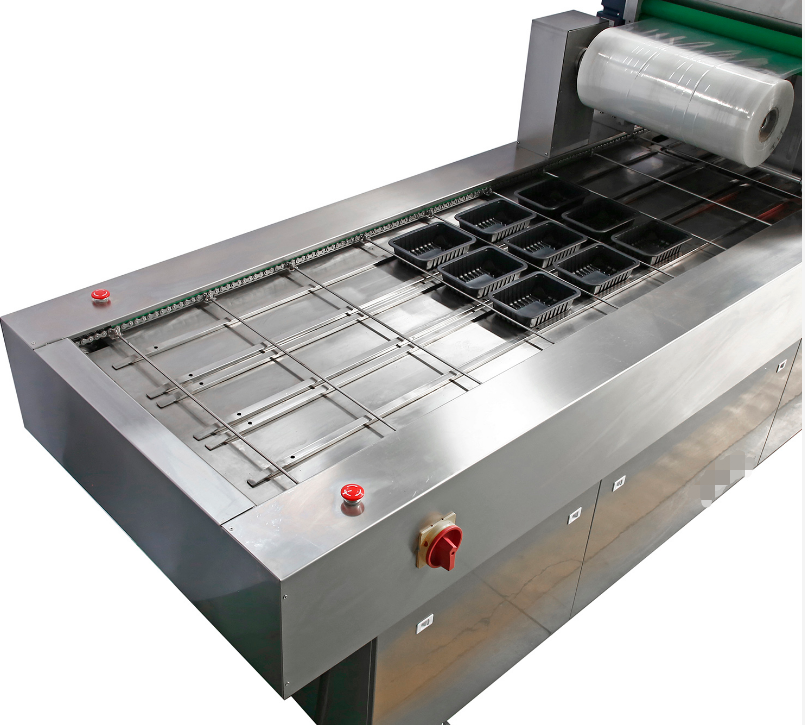

The basic principle of the MAP tray sealer machine is packing the food in the plastic tray, vacuum firstly, then fill the
protection gas into the trays and sealing film, 99.5% gas replacement rate, keep food fresh longer time and natural color. The packed food healthy, safe, and pleasing to the eye and prevent the pollution of food.

技术参数Technical Parameters

Model

YC-1000

Maximum box size (4 boxes each time)

custom made

Maximum width of roll film (mm)

custom made

Maximum diameter of roll film (mm)

200

packaging speed box/h

1000-1400

power supply

380V/50HZ

Working voltage (Mpa)

0.6-0.8

Total power KW

7.5

Vacuum pump pumping rate (m3/h)

100

Vacuum pump motor power (KW)

2.2

Vacuum configuration

Germany Busch R5-100

Gas replacement rate

99%

Gas distribution accuracy

1%

Residual oxygen rate

1%

Machine weight (kg)

1200

Dimensions (mm)

3500×1100×1860
