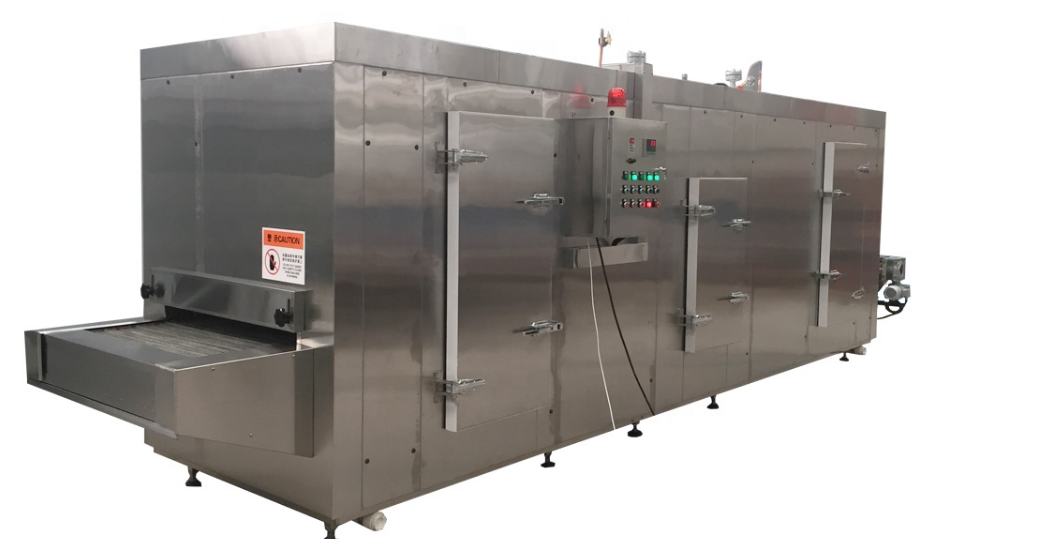

IQF Tunnel and Screw Quick Freezer
- Main target market:
- Minimum order quantity :
Exhibit parameters
- Exhibit code：SN016262
- Size of exhibits（mm）：
- Model of exhibits：
- Materials of exhibits：
- Color of exhibits：
- Place of delivery：China--
- Raw material production place：China--
- Features of exhibits：
Details of exhibits
产品名称：Tunnel IQF Quick Freezer
产品描述：tunnel quick freezer is a kind of tunnel structure is relatively simple and high efficient quick-frozen device,it have convenient operation and long service life. library board adopts double stainless steel sandwich polyurethane insulation board ,The heat preservation effect is good.internal components using high-quality stainless steel SUS304.easy cleaning ,HACCP requirement.
stainless steel mesh belt,the surface is smooth, easy to clean, using water frost,ensure clean sanitation.Freezing time can be adjusted, suitable for a variety of quick freezing food
产品优势：
◆fast freezing,tunnel quick freezer With automatic transmission function, fast frozen food can keep fresh in the processing of freezeing. protect the color of food .
It have different type as different food, different capacity and different food making process.
Model | Dreezing capacity(KG/H) | Cold consumption(KW) | Installed power(KW) | Length | Width | Height | Mesh belt width |
IQF -100 | 100 | 15 | 2.3 | 7 | 1.5 | 2.1 | 1 |
IQF -150 | 150 | 21.5 | 3 | 8 | 1.8 | 2.2 | 1.3 |
IQF -300 | 300 | 43.5 | 6.5 | 12 | 2.3 | 2.3 | 1.8 |
IQF -500 | 500 | 75 | 10.3 | 13.5 | 3 | 2.5 | 2.5 |
IQF -1000 | 1000 | 142 | 19.8 | 21.5 | 3 | 2.5 | 2.5 |
IQF -2000 | 2000 | 278 | 38 | 29.2 | 4.1 | 2.5 | 2.5 |
