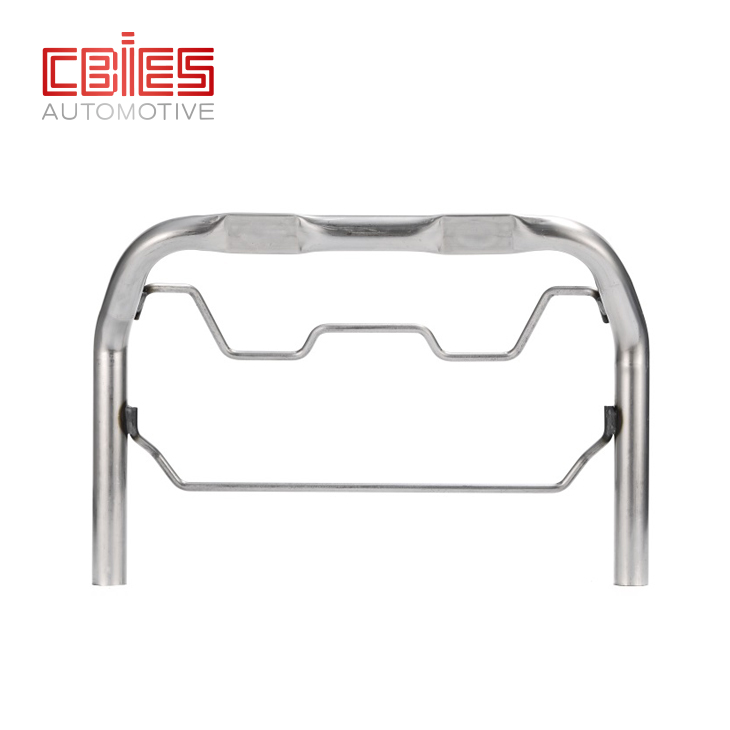

Backrest beam assembly

As a manufacturer of precision steel tubes for AUTOMOTIVE, Cbies Automotive is committed to creating more energy-saving, safe and lightweight products.

On the basis of ensuring product quality, CBIES® reduce the diameter and wall of the auto seat parts to reduce the cost and realize the lightweight of automobile.

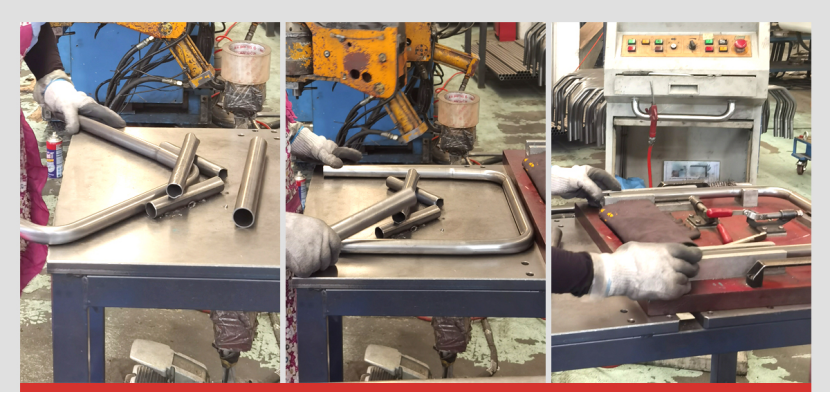

 In order to meet the needs of customers, we not only have steel pipe production equipment, but also have our own post-processing equipment, such as pipe bending machine, punching machine, flat machine, neck shrinking machine, flaring machine, etc.,. We have rich processing experience and provide auto parts for many international brands.

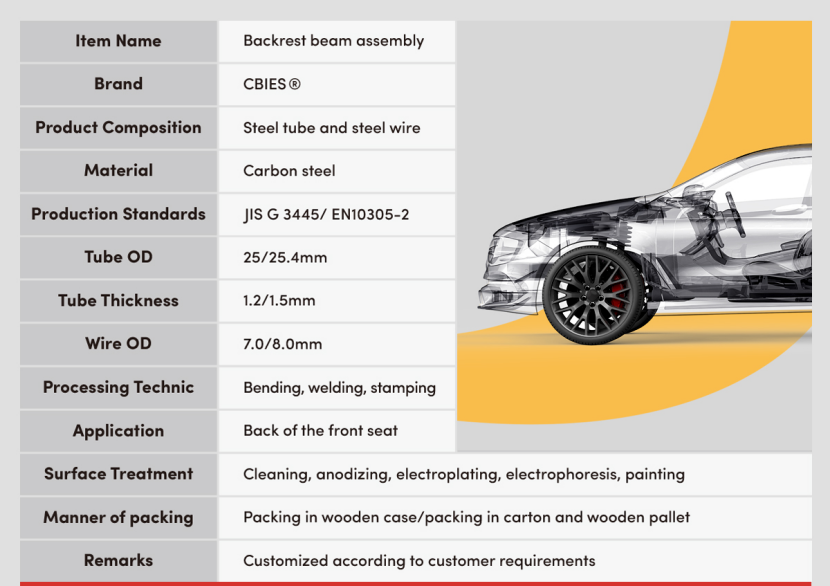

 Specification

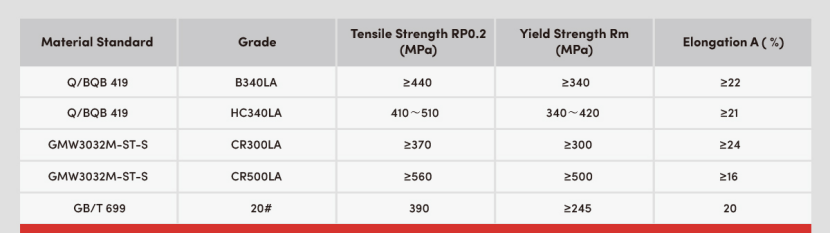

Mechanical Properties

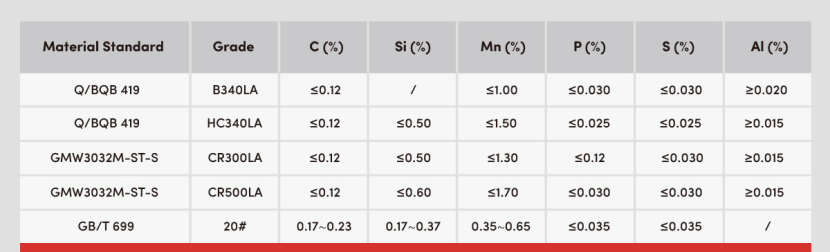

Chemical Components

Tolerance

Steel tube:

OD: ±0.1mm

Thickness: ±0.1mm

Steel wire:

OD：±0.1mm

We can also customized according to customer requirements

Quality Control

Raw materials: Test for chemical components, mechanical properties,OD,thickness and length;

Finished products: Use gage to test product shape;

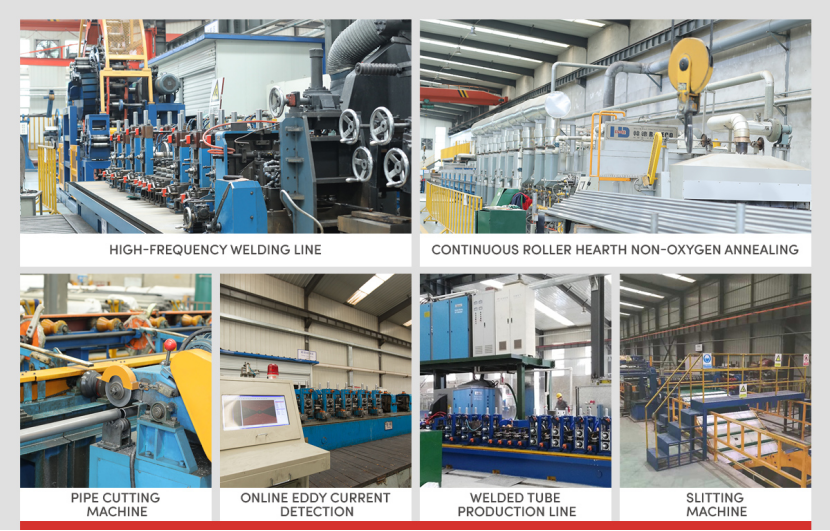

Production Equipments

CBIES® Steel pipe production equipment

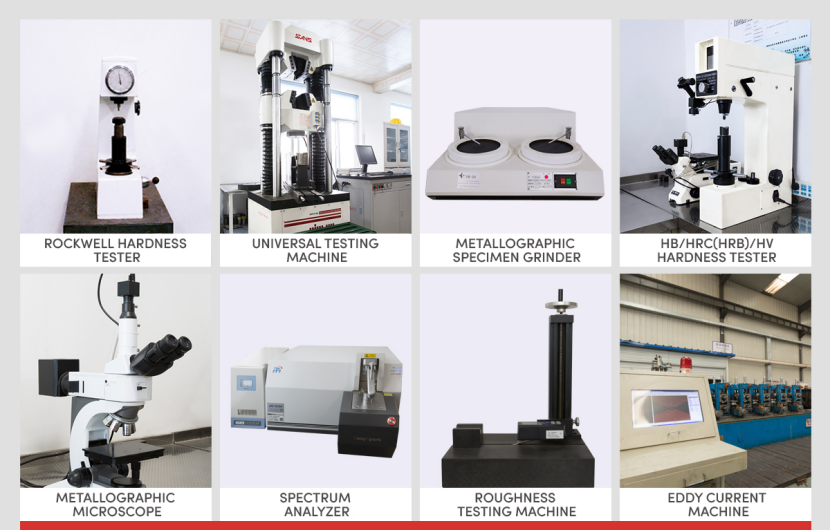

Testing Instruments

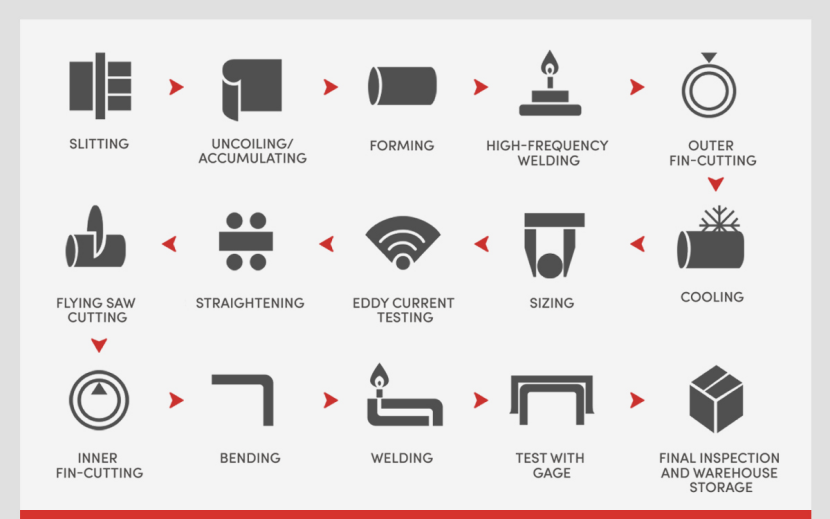

Process Flow

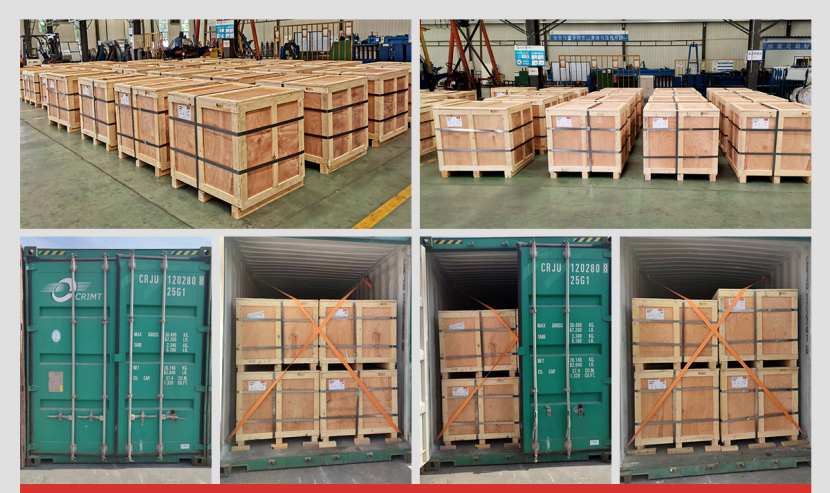

Packing and Delivery

We choose the appropriate packaging according to the characteristics of each product, to ensure that the products are fully protected in transportation, and make it convenient for the loading and unloading of goods.

Door-to-door services don’t stop at the harbour. HEBEI CBIES has its own logistics department and freight forwarder which set up an impressive logistics infrastructure and organization on the ground in most of the global markets.

Our scale and presence creates cost efficiency in intercontinental shipping as well as local custom clearing, warehousing and road transportation services. We take care of the last-mile logistics, can invoice on DDP basis and also provide 3PL (third party logistics) services.
